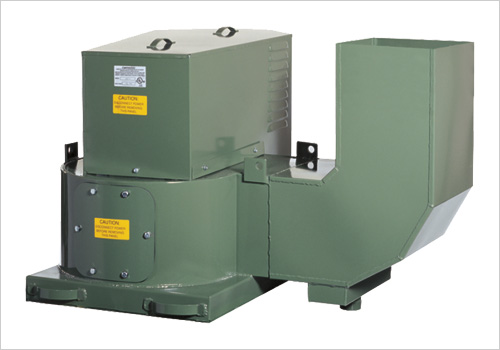

GMV - Utility Set: High Velocity Restaurant Duty



Air Volume: 200 - 9000 CFM
Maximum SP: 2" wg. standard air density


Features & Benefits
• Virtually grease-free rooftops
• No added options needed
• No pre-mature motor failures
• Handles high temperature, heavy grease applications
• Curb mounted design
• Exceptional performance. Handles up to 9000 CFM and 4.5” w.g. static pressure
• Pleasing aesthetics – high quality enamel painted housing
• Ventilated motor housing for motor, shaft and drive protection
• Rigid motor plate assembly
• Non-overloading, welded steel backward inclined wheel is statically and dynamically balanced and permits usage on high static pressure applications
• Balancing weights are mechanically fastened
• Heavy duty bearings in excess of 200,000 hours of operation
• Motor base and shaft seals provide a double layer of protection to eliminate water leaks into the building and grease build-up on motor
• Grease laden air does not enter the motor compartment, increasing the life of the motor and allowing use on high temperature and grease applications
• Discharge section continuously welded to avoid grease leakage
• Continuously welded scroll to prevent grease leakage onto the rooftop
• Grease drain centered and fully welded onto discharge elbow
• Newly engineered hinged base for improved installation

Certifications
Models GMV-13 thru GMV-24 have been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance. Models GMV13 through GMV 24 are UL Listed for the removal of smoke and grease laden vapors, UL762 and UL705 and are in conformance with NFPA96.
